Production IntroductionProduction Introduction

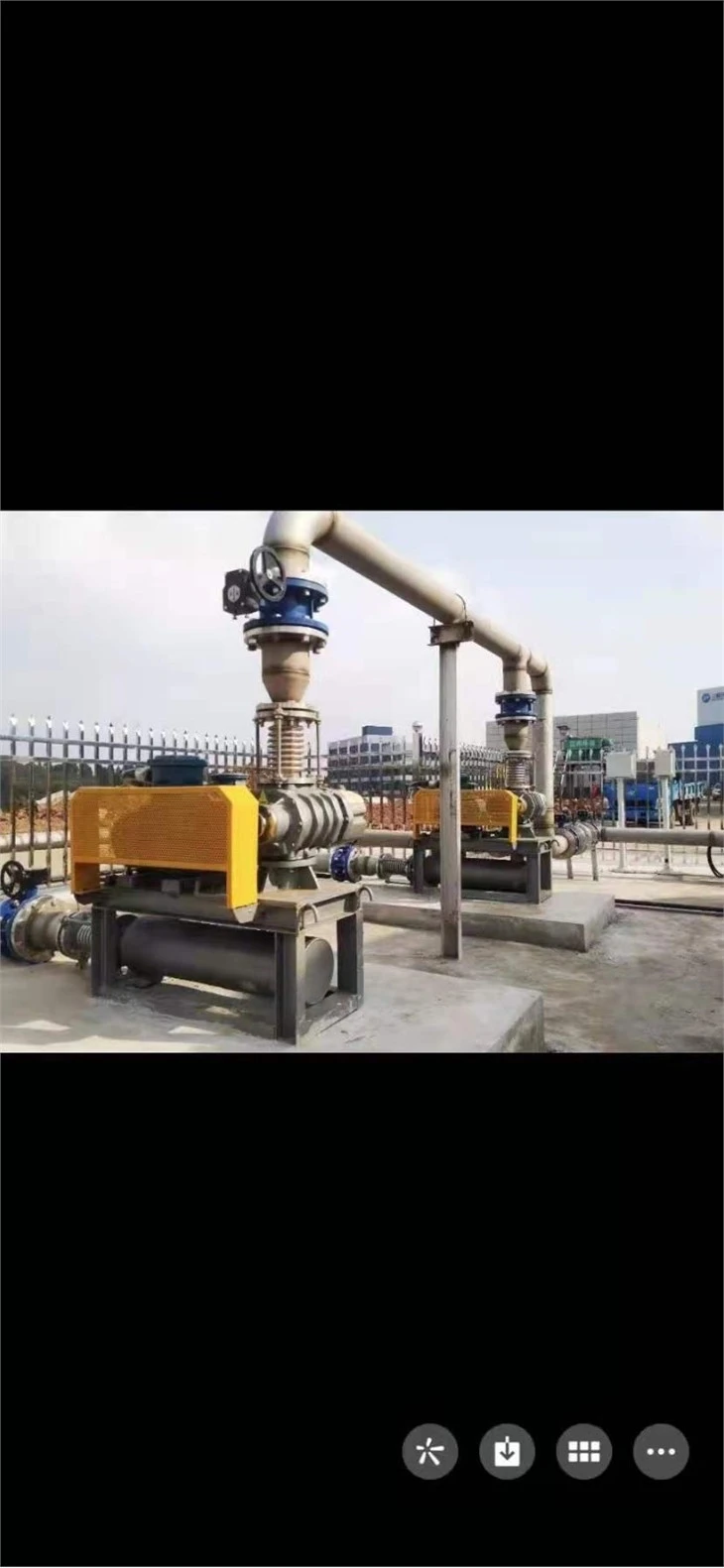

Two sets of ss roots blower with ATEX motor for biogas delivery
The blower are V-belt driven with motor.SS blower are corrosion resistant and explosion proof for harsh working condition such as transmitting gases likes hydrogen and biogas etc.
Basic Info.
products name: roots blower
Brand:RH
material:316L Stainless steel
Place of origin:Nantong China
Usage:corrosive gases boosting
Features: rugged structure and high flow capacity
Pressure rise:up to 78kpa
Flow volume:4.3-7.3m3/min
Rotation:1650-2100 rpm
Cooling :natural air coolilng
Application: process gases delivery,such as coal gas, biomethane etc.
color: silver, the color can be customized by customer
Noise: less than 82dB
| Model | Speed(n) | △P | Air flow(Q) | Shaft Power | Motor | Weight | ||
| r/min | kPa | mmH2O | m3/min | kW | model | PowerkW | kg | |
| RH08023 | 1450 | 9.8 | 1000 | 4.82 | 1.6 | Y2-100L1-4 | 2.2 | 254 |
| 19.6 | 2000 | 4.52 | 2.4 | Y2-100L2-4 | 3 | 258 | ||
| 29.4 | 3000 | 4.23 | 3.3 | Y2-112M-4 | 4 | 264 | ||
| 39.2 | 4000 | 3.93 | 4.1 | Y2-132S-4 | 5.5 | 287 | ||
| 49 | 5000 | 3.74 | 5.0 | Y2-132S-4 | 5.5 | 287 | ||
| 58.8 | 6000 | 3.54 | 5.8 | Y2-132M-4 | 7.5 | 301 | ||
| RH08023 | 1650 | 9.8 | 1000 | 5.70 | 1.9 | Y2-100L1-4 | 2.2 | 254 |
| 19.6 | 2000 | 5.31 | 2.8 | Y2-100L2-4 | 3 | 258 | ||
| 29.4 | 3000 | 5.11 | 3.8 | Y2-112M-4 | 4 | 264 | ||
| 39.2 | 4000 | 4.92 | 4.7 | Y2-132S-4 | 5.5 | 287 | ||
| 49 | 5000 | 4.62 | 5.6 | Y2-132M-4 | 7.5 | 301 | ||
| 58.8 | 6000 | 4.33 | 6.6 | Y2-132M-4 | 7.5 | 301 | ||
| 1800 | 9.8 | 1000 | 6.29 | 2.1 | Y2-100L2-4 | 3 | 258 | |
| 19.6 | 2000 | 5.90 | 3.1 | Y2-112M-4 | 4 | 264 | ||
| 29.4 | 3000 | 5.60 | 4.2 | Y2-132S-4 | 5.5 | 287 | ||
| 39.2 | 4000 | 5.41 | 5.2 | Y2-132M-4 | 7.5 | 301 | ||
| 49 | 5000 | 5.21 | 6.2 | Y2-132M-4 | 7.5 | 301 | ||
| 58.8 | 6000 | 5.01 | 7.3 | Y2-160M-4 | 11 | 344 | ||
| 1950 | 9.8 | 1000 | 6.78 | 2.2 | Y2-100L2-4 | 3 | 258 | |
| 19.6 | 2000 | 6.49 | 3.4 | Y2-112M-4 | 4 | 264 | ||
| 29.4 | 3000 | 6.19 | 4.6 | Y2-132S-4 | 5.5 | 287 | ||
| 39.2 | 4000 | 6.00 | 5.7 | Y2-132M-4 | 7.5 | 301 | ||
| 49 | 5000 | 5.80 | 6.9 | Y2-132M-4 | 7.5 | 301 | ||
| 58.8 | 6000 | 5.60 | 8.0 | Y2-160M-4 | 11 | 344 | ||
| 2100 | 9.8 | 1000 | 7.37 | 2.4 | Y2-100L2-4 | 3 | 258 | |
| 19.6 | 2000 | 7.08 | 3.7 | Y2-132S-4 | 5.5 | 287 | ||
| 29.4 | 3000 | 6.88 | 5.0 | Y2-132S-4 | 5.5 | 287 | ||
| 39.2 | 4000 | 6.49 | 6.2 | Y2-132M-4 | 7.5 | 301 | ||
| 49 | 5000 | 6.19 | 7.5 | Y2-160M-4 | 11 | 344 | ||
| 58.8 | 6000 | 6.00 | 8.7 | Y2-160M-4 | 11 | 344 | ||
