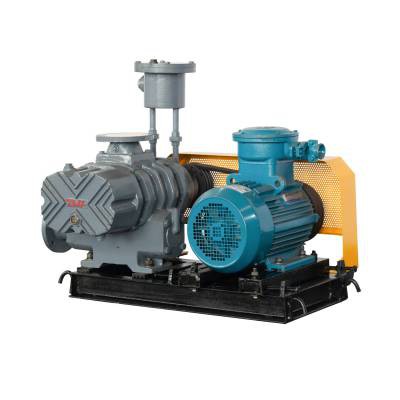

Roots blower-RH06521

Roots blower also called positive rotary blower.

It provide relative constant air volume while at variable pressure fluctuation.Roots blower belongs to volumetric blower. The RH brand blower are kicked off since 1993.We supply a wide range of three lobe blowers from DN50 to DN 350.

We have grease type roots blower and oil lubricated roots blower. For high pressure we also designed water cooled roots blower.

With advanced rotor profile, our blower feature large flow volume while maintain low noise, which makes us standing out in this competitive industry.

Brief introduction:

Products	Roots blower
Flow	2.03-6.35m3/min
Boost	9.8-58.8 kpa
Power	Low Pressure
Power source	Electric motor
Bore Dia.	DN65
Material	Cast iron, stainless steel
Voltage	380V/50Hz;440V/60HZ
CE	M2020206c8870
Lubrication	grease/oil
Color	Blue/Silver(Accept customization)
Product packaging	Standard wooden package(Accept customization)
HS Code	841459
Certification	ISO9001,CE
Lead time	5-10 weeks

Model	Speed(n)	△P		Air flow(Q)	Shaft Power	Motor		Weight
Model	r/min	kPa	mmH2O	m3/min	kW	model	PowerkW	kg
RH06521	1450	9.8	1000	2.94	0.81	Y2-90S-4	1.1	208
		19.6	2000	2.68	1.36	Y2-90L-4	1.5	209
		29.4	3000	2.51	1.93	Y2-100L1-4	2.2	217
		39.2	4000	2.33	2.47	Y2-100L2-4	3	217
		49	5000	2.18	3.13	Y2-112M-4	4	227
		58.8	6000	2.03	3.78	Y2-112M-4	4	227
	1650	9.8	1000	3.38	0.96	Y2-90S-4	1.1	208
		19.6	2000	3.13	1.55	Y2-100L1-4	2.2	217
		29.4	3000	2.96	2.13	Y2-100L2-4	3	218
		39.2	4000	2.78	2.74	Y2-112M-4	4	227
		49	5000	2.63	3.34	Y2-112M-4	4	227
		58.8	6000	2.48	3.95	Y2-132S-4	5.5	250
	1800	9.8	1000	3.74	1.07	Y2-90L-4	1.5	210
		19.6	2000	3.48	1.72	Y2-100L1-4	2.2	218
		29.4	3000	3.30	2.36	Y2-100L2-4	3	219
		39.2	4000	3.13	3.02	Y2-112M-4	4	228
		49	5000	2.98	3.67	Y2-112M-4	4	228
		58.8	6000	2.82	4.32	Y2-132S-4	5.5	251
	1950	9.8	1000	4.08	1.18	Y2-90S-4	1.5	211
		19.6	2000	3.82	1.88	Y2-100L1-4	2.2	218
		29.4	3000	3.65	2.59	Y2-100L2-4	3	219
		39.2	4000	3.47	3.30	Y2-112M-4	4	229
		49	5000	3.32	4.01	Y2-132S-4	5.5	252
		58.8	6000	3.17	4.73	Y2-132S-4	5.5	252
	2100	9.8	1000	4.43	1.29	Y2-100L1-4	2.2	219
		19.6	2000	4.17	2.06	Y2-100L2-4	3	220
		29.4	3000	4.00	2.81	Y2-112M-4	4	230
		39.2	4000	3.82	3.55	Y2-112M-4	4	230
		49	5000	3.67	4.30	Y2-132S-4	5.5	253
		58.8	6000	3.52	5.05	Y2-132S-4	5.5	253
	2950	9.8	1000	6.35	1.73	Y2-90L-2	2.2	208
		19.6	2000	6.11	2.92	Y2-112M-2	4	217
		29.4	3000	5.92	4.14	Y2-132S1-2	5.5	244
		39.2	4000	5.74	5.32	Y2-132S2-2	7.5	251
		49	5000	5.61	6.56	Y2-132S2-2	7.5	251
		58.8	6000	5.48	7.78	Y2-160M1-2	11	293
