High Capacity Water Ring Vacuum Pump for Toilet Paper Machine

We are a campany making alcatel vacuum pump, Blower Remote Monitoring System, vertical roots blower which has been developing very fast in recent years. The company is trying to create a first-class brand and set up a good image of honesty , pro-viding good services for all the comsumers both at home and abroad. Management is the eternal theme of our company's development, and strict management is the guarantee of effective management. Strict management is the guarantee of efficiency. Looking forward to the future, we firmly believe that our cooperation will be more wonderful with your company along the way. Our company has first-class technical talents, scientific maintenance and management mechanisms, and a complete corporate culture system.

Design Advantages

1. High-strength impeller case is heavily ribbed to result in reduced

noise (up to 5 dBA) and more stable, vibration-free operation

2. Steel drive shaft provides extra strength and rigidity for greater

overhung load capacity

3. Heavy duty bearings for greater reliability

4. Shaft lip seals provide oil-free air delivery

5. Cast iron rotors are dynamically balanced for smooth operation in

any configuration

6. timing gears are splash lubricated for longer service life

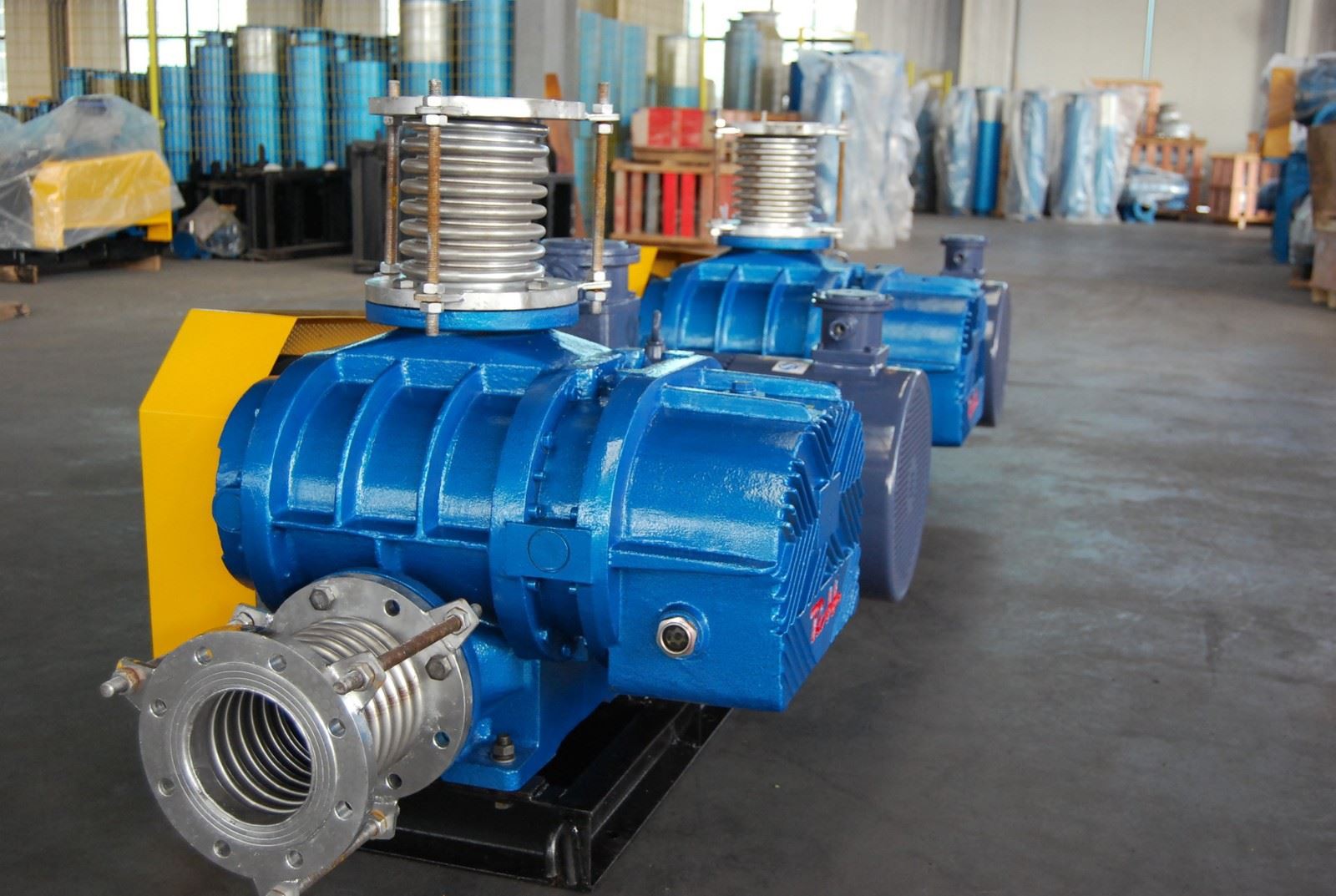

About RH blower
RH Roots Blower is exquisite designed and fabricated according to the national and industry standards by our rich experienced technicians . we are one of the industrial benchmark drafters in roots blower industry.
Place of origin:China
Port:Shanghai
Model: RH12533
Diameter: DN125
Flow Capacity:8.5-12m3/min
Pressure:up to 78kpa
Noise:less than 80dB(A)
cooling type: water cooling or air cooling
motor:15kw-37kw IP54 380V/415V 50HZ
Accessories: inlet silencer, outlet silencer, check valve, flexible joint,pressure gauge
connection: direct coupling or V-belt driven

(2)

Model	Speed(n)	△P		inlet Capacity(Q)	shaft power	motor		weight
Model	r/min	kPa	mmH2O	m3/min	kW	model	kW	kg
RH12533	1310	9.8	1000	12.82	3.7	Y2-132S-4	5.5	457
		19.6	2000	12.12	5.9	Y2-132M-4	7.5	471
		29.4	3000	11.40	8.1	Y2-160M-4	11	514
		39.2	4000	10.70	10.3	Y2-160L-4	15	535
		49	5000	10.25	12.6	Y2-160L-4	15	535
		58.8	6000	9.89	14.8	Y2-180M-4	18.5	570
		68.6	7000	9.43	17.1	Y2-180M-4	18.5	570
		78.4	8000	8.94	19.3	Y2-180L-4	22	590
	1450	9.8	1000	14.43	4.0	Y2-132S-4	5.5	457
		19.6	2000	13.75	6.5	Y2-132M-4	7.5	471
		29.4	3000	12.89	9.0	Y2-160M-4	11	514
		39.2	4000	12.36	11.5	Y2-160L-4	15	535
		49	5000	11.84	14.1	Y2-180M-4	18.5	570
		58.8	6000	11.36	16.6	Y2-180M-4	18.5	570
		68.6	7000	10.97	19.2	Y2-180L-4	22	590
		78.4	8000	10.58	21.7	Y2-200L-4	30	660
	1600	9.8	1000	16.27	4.5	Y2-132S-4	5.5	457
		19.6	2000	15.44	7.2	Y2-160M-4	11	514
		29.4	3000	14.39	9.9	Y2-160M-4	11	514
		39.2	4000	13.85	12.5	Y2-160L-4	15	535
		49	5000	13.42	15.2	Y2-180M-4	18.5	570
		58.8	6000	12.90	17.9	Y2-180L-4	22	590
		68.6	7000	12.30	20.5	Y2-200L-4	30	660
		78.4	8000	11.82	23.2	Y2-200L-4	30	660

That has a sound small business credit, great after-sales service and modern production facilities, we've earned an outstanding standing amid our buyers across the earth for High Capacity Water Ring Vacuum Pump for Toilet Paper Machine. We always follow the quality policy of scientific management, technological innovation, careful operation, service first, meeting the requirements of the contract and winning the trust of customers. We pursue the management tenet of 'Quality is superior, Service is supreme, Reputation is first', and will sincerely create and share success with all clients.
