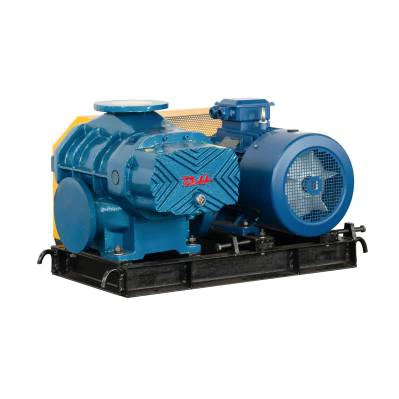

Roots blower for fishery

roots blower for fishery industry, Roots type blower are used in fishery aquaculture industry for providing oxygen to the pond.The air dissolved in clean water by fine bubble make sure the oxygen concentration for fishery demands.

Products introduction:

Roots blower for fishery industry, scope supply generally include inlet silencer, outlet silencer, check valve, flexible joint, pressure gauge etc.

Roots blower can provide clean air without oil pollution for aquaculture creatures.

Roots blower and motor are mounted on a common plate, the blower can be V-belt connected or coupling directed.

Roots blower can provide clean air to aquaculture with pressure up to 68 kpa, air volume up to 50m3/min, it depends on the size of the pond, if more air needed, we can provide wide range models for various working conditions

Model	Speed(n)	△P		Air flow(Q)	Shaft Power	Motor		Weight
Model	r/min	kPa	mmH2O	m3/min	kW	model	kW	kg
RH06514	1250	9.8	1000	2.16	0.57	Y2-80M2-4	0.75	110
		19.6	2000	1.98	0.95	Y2-90S-4	1.1	112
		29.4	3000	1.81	1.35	Y2-90L-4	1.5	120
		39.2	4000	1.73	1.74	Y2-100L1-4	2.2	128
		49	5000	1.55	2.15	Y2-100L2-4	3	133
		58.8	6000	1.38	2.55	Y2-100L2-4	3	133
	1450	9.8	1000	2.50	0.67	Y2-90S-4	1.1	112
		19.6	2000	2.33	1.14	Y2-90L-4	1.5	120
		29.4	3000	2.16	1.59	Y2-100L1-4	2.2	128
		39.2	4000	2.07	2.04	Y2-100L2-4	3	133
		49	5000	1.90	2.52	Y2-100L2-4	3	133
		58.8	6000	1.73	2.98	Y2-112M-4	4	137
	1650	9.8	1000	2.85	0.81	Y2-90S-4	1.1	112
		19.6	2000	2.67	1.31	Y2-90L-4	1.5	120
		29.4	3000	2.50	1.80	Y2-100L1-4	2.2	128
		39.2	4000	2.42	2.30	Y2-100L2-4	3	133
		49	5000	2.24	2.79	Y2-112M-4	4	137
		58.8	6000	2.07	3.31	Y2-112M-4	4	137
	1850	9.8	1000	3.19	0.95	Y2-90S-4	1.1	112
		19.6	2000	3.02	1.50	Y2-100L1-4	2.2	128
		29.4	3000	2.85	2.03	Y2-100L2-4	3	133
		39.2	4000	2.67	2.57	Y2-100L2-4	3	133
		49	5000	2.59	3.11	Y2-112M-4	4	137
		58.8	6000	2.42	3.65	Y2-112M-4	4	137
	2050	9.8	1000	3.54	1.09	Y2-90L-4	1.5	120
		19.6	2000	3.36	1.68	Y2-100L1-4	2.2	128
		29.4	3000	3.19	2.26	Y2-100L2-4	3	133
		39.2	4000	3.11	2.85	Y2-100L2-4	4	137
		49	5000	2.93	3.43	Y2-100L2-4	4	137
		58.8	6000	2.76	4.01	Y2-132S-4	5.5	155
	2950	9.8	1000	5.43	1.53	Y2-90L-2	2.2	128
		19.6	2000	5.11	2.45	Y2-100L-2	3	133
		29.4	3000	4.89	3.43	Y2-112M-2	4	137
		39.2	4000	4.70	4.46	Y2-132S1-2	5.5	155
		49	5000	4.53	5.52	Y2-132S2-2	7.5	170
		58.8	6000	4.36	6.59	Y2-132S2-2	7.5	170

Nantong Rongheng Environmental Equipment Co.,Ltd. established in 1993, is one of the most reliable indutrial air blower suppliers. With decades experience and know-how we have provided thousands of hundreds products to the markets, we will always progress with our business partners to achieve reciprocal mutual benefits!
