Roots blower RH10041

Products name: DN00 (4inch) roots blower
Brand:RH
Model:RH10041
Place of orign:Nantong China
Drive :direct coupling / V-belt transmission
color: blue or silver
Motor brand: Jianghuai , Wannan,Teco
Power:22kw /18.5kw/11kw
Motor protection class: IP55, Variable frequency motor available
Weight:550kg approx.
Flow capacity:10-15m3/min
Pressure:9.8-98kpa
Rotation speed:980rp-2050rpm
Rated Voltage:380V/415V,50/60HZ,3P
lubrication: oil,grease
Noise: less than 81dB(A) 1 meter distance from roots blower
cooling water connection size:DN15,G1/2 male thread for inlet pipe, female thread for outlet pipe

FAQ

Q.How does your factory do regarding quality control?

A.Quality is priority .We always pay great attention to quality control through the whole production process

Q: What is your MOQ ?

A: We have no MOQ limited for our standard specification products.

Q: What is your terms of packing?
A: Generally, we pack our goods in fumigation-free wooden case.
Q. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the details of the products and packages before you pay the balance.

Packing

company introduction

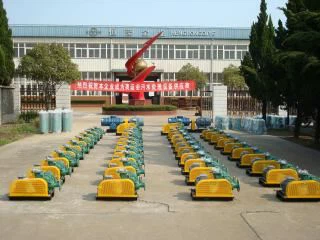

Nantong Rongheng Environmental Equipment Co.,Ltd. Originally Nantong hengrong pump factory from Haimen Nantong China since 1993. We are one of the earliest three lobed roots blower manufacturer and supplier in China.

Our products feature low noise and large flow,a state level high-tech enterprise with almost 30 years experience in industrial blower field. Our products cover: three lobe roots blower, roots vacuum pump,high speed turbo blower,rotary vane blower and integrated waste water treatment equipments.

For more information, visit our website:www.rh-cn.com

Model	Speed(n)	△P		inlet Capacity(Q)	shaft power	motor		weight
Model	r/min	kPa	mmH2O	m3/min	kW	model	kW	kg
RH10041	980	9.8	1000	8.5	2.7	Y2-132S-6	3	565
		19.6	2000	7.8	4.2	Y2-132M2-6	5.5	584
		29.4	3000	7.1	5.7	Y2-160M-6	7.5	618
		39.2	4000	6.8	7.3	Y2-160L-6	11	645
		49	5000	6.3	8.8	Y2-160L-6	11	645
		58.8	6000	6.0	10.4	Y2-180L-6	15	695
		68.6	7000	5.7	11.9	Y2-180L-6	15	695
		78.4	8000	5.1	13.4	Y2-180L-6	15	695
		88.2	9000	4.4	14.9	Y2-200L1-6	18.5	720
		98	10000	3.8	16.5	Y2-200L1-6	18.5	720
Model	Speed(n)	△P		inlet Capacity(Q)	shaft power	motor		weight
Model	r/min	kPa	mmH2O	m3/min	kW	model	kW	kg
RH10041	1450	9.8	1000	13.1	4.0	Y2-132S-4	5.5	567
		19.6	2000	12.4	6.1	Y2-132M-4	7.5	581
		29.4	3000	11.9	8.4	Y2-160M-4	11	624
		39.2	4000	11.5	10.6	Y2-160L-4	15	645
		49	5000	11.1	12.8	Y2-160L-4	15	645
		58.8	6000	10.8	15.1	Y2-180M-4	18.5	680
		68.6	7000	10.6	17.4	Y2-180M-4	18.5	680
		78.4	8000	10.0	19.6	Y2-180L-4	22	700
		88.2	9000	9.2	21.9	Y2-200L-4	30	770
		98	10000	8.6	24.2	Y2-200L-4	30	770
